Orthodox Tea Processing Machine

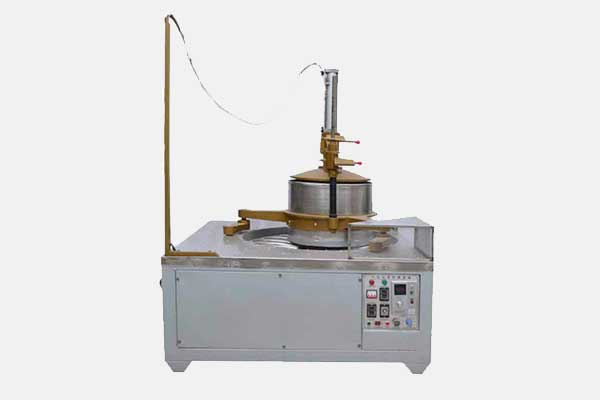

Pneumatic Platform Type Tea Roller

Feature:

Rolling timing, pressure, speeding can e adjustable in controlling panel. Tea leaf is tight and uniform, tea quality is consistent. It is currently the most advanced pneumatic rolling machine, suitable for large batch processing work.

Specification:

Model No. Machine dimensions(m) Inner diameter*Depth of the rolling cyinder(m) Feeding Volume(weight)(kg) Revolutions Per minute(rpm) Required Power(kw)
Length WidthHeight
JY-6CR45BFP 1.28 1.22 1.35 0.45*0.32 15~25 30~60 1.1
JY-6CR55BFP 1.56 1.43 1.66 0.55*0.42 30~50 30~60 2.2
JY-6CR65BFP 1.74 1.58 2.18 0.65*0.49 60~80 30~60 3.0
JY-6CR75BFP 2.07 1.85 2.18 0.75*0.57 150~200 30~60 5.5
