Orthodox Tea Processing Machine

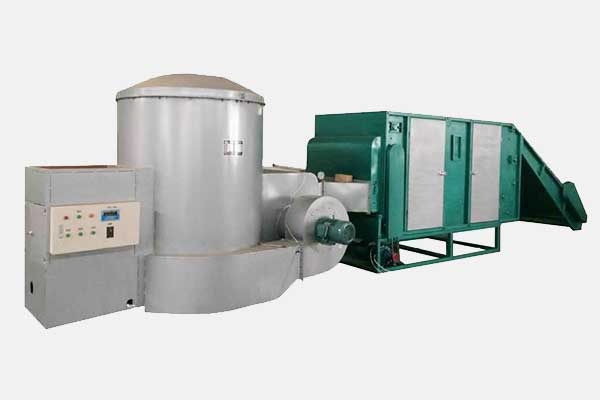

Tea Dryer (Biomass Gasifier Stove)new Technology, High Thermal Efficiency, Protect Environment Chain Plate

Specification:

Model No. Machine dimensions(m) Performance capacity(kg/h) Power(kw)
Length WidthHeight Feeding leaf Dried leaf Main unitExhaustFan
JY-6CHB6 6.2 1.74 1.6 60~80 40~50 1.1 0.75 3.0
JY-6CHB10 7.9 1.74 1.6 90~110 60~70 1.5 0.75 3.0
JY-6CHB16 8.7 1.74 2.06 120~140 80~90 1.5 1.5 5.5
JY-6CHB25 9.2 2.12 2.18 170~190 110~120 1.5 1.5 5.5
JY-6CHB35 10.5 2.12 2.58 220~250 140~160 2.2 1.5 7.5
