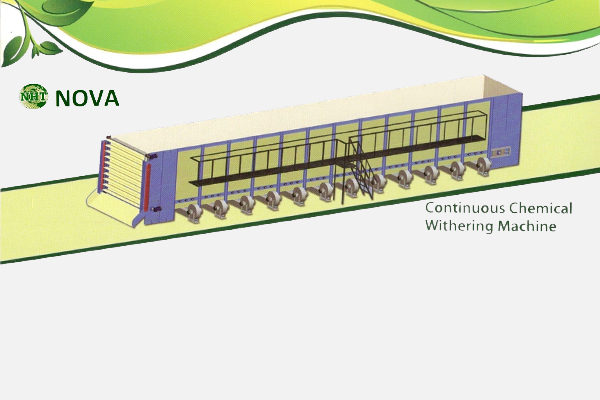

Continuous Chemical Withering Machine

Chemical Withering:

Responsible for changes in the chemical properties of the leaf shoot, which eventually develops the liquor quality of made tea.

Minimum duration should be 6 hrs under controlled conditions of - air exit velocity, volume, static pressure, relative humidity, and dry bulb temperature.

The objective is to achieve 'zero moisture loss'.

Advantages of separate mode of chemical withering:

  1. Savings in space - Withering troughs not required.
  2. Savings in labour - Numbers of workers required for withering 1-2.
  3. Savings in energy - Reduction of power in withering section
  4. Consistent quality of withering.
  5. Automatic spreading of leaf inside both CCW and CPW

Feature:

  1. Specially imported belt for conveying of leaf.
  2. Main dive and driven rollers with auto tracking belt arrangement.
  3. Variable frequency drive to monitor and control residence time of chemical wither.
  4. Unique feeding mechanism for uniform and proper distribution of leaf in the container.
  5. Specially designed distribution plate for uniform air distribution.
  6. Aerodynamically designed fans with individual humidification system.
  7. Centralized Operating console with AC variator and throughput time indicator for residence time control.
  8. Discharge doffer arrangement.

Ccw Type 4 Mtr. / Each Module Length 1.2 Mtr:

Content Type Width Centre to Centre Distance Between The Two Rollers Holding capacity of Machine at Different leaf Stack Height.
1.2 mtr1.5 mtr1.8 mtr
CCW-12-SSTRAY 4.0 mtr 15.6mtr 10483 kgs 13104 kgs 15724 kgs
CCW-18-SSTRAY 4.0 mtr 22.8 mtr 15321 kgs 19152 kgs 22982 kgs
CCW-24-SSTRAY 4.0 mtr 30.0 mtr 20160 kgs 25200 kgs 30240 kgs
CCW-30-SSTRAY 4.0 mtr 37.2 mtr 24998 kgs 31248 kgs 37497 kgs

Ccw Type 3 Mtr. / Each Module Length 1.2 Mtr:

Content Type Width Centre to Centre Distance Between The Two Rollers Holding capacity of Machine at Different leaf Stack Height.
1.2 mtr1.5 mtr1.8 mtr
CCW-12-SSTRAY/BELT 3.0 mtr 15.6mtr 7862 kgs 9828 kgs 11793 kgs
CCW-18-SSTRAY/BELT 3.0 mtr 22.8 mtr 11491 kgs 14364 kgs 17236 kgs
CCW-24-SSTRAY/ BELT 3.0 mtr 30.0 mtr 15120 kgs 18900 kgs 22680 kgs
CCW-30-SSTRAY/ BELT 3.0 mtr 37.2 mtr 18748 kgs 23436 kgs 28123 kgs
