Vacuum Packaging Machine
Product Description:

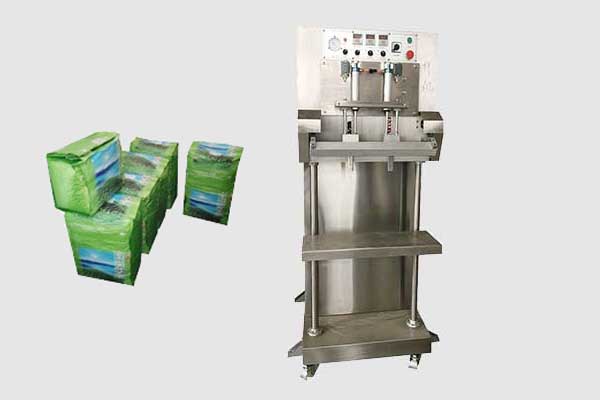

JY-DZQ600L is a multi-function vacuum gas-filling packing machine.
It’s suitable for vacuum packaging or packaging of filling inert gas in bag after vacuum.
It’s adopts no case and double gas nozzle design, which is not limited by vacuum chamber.
It’s suitable for lower vacuum standard but high standard purity of gas filling.
Such as sealing thick plastic or composite membrane, we can adopt double heating of model JYDZQ-600L/S.
Special order can expand the length of the sealing to 700mm, 800mm, 1000mm.
Specification:
| Model | Power Supply | Hot sealing Power | Vacuum pump Power | Sealing-bar Size | Size from sealing center to Floor | Vacuum pump stroke Volume | Dimension | Weight |
|---|---|---|---|---|---|---|---|---|
| JY-DZQ600L | AC 380V/50HZ | 500W | 750W | L:600mm 700mm, 800mm, 1000mmW:8m | 1060mm | 20m3/h | 800x900x1700mm | 240kg |
