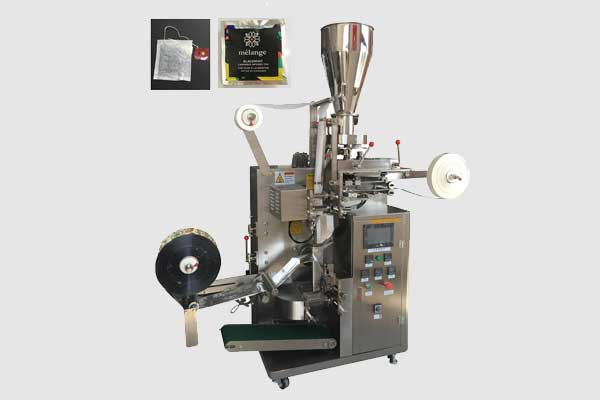

Tea Bag With Thread And Tag Packaging Machine
Usage:
The machine is suitable for packing broken herbs, coffee granules and other granule products.
Feature:
- The machine is a kind of newly-design by heat sealing type, multifunctional and fully automatic packaging equipment.
- The highlight of this unit is the fully automatic package for both inner and outer bags in a single pass on the same machine, to avoid direct touch with the stuffing materials and meanwhile improve the efficiency..
- PLC control ad high-grade touch screen for easy adjustment of any parameters.
- Fully stainless steel structure to meet QS standard..
- The inner bag is made of filter cotton paper..
- The outer bag is made of laminated film..
- Advantages: photocell eyes to control the positioning for the tag and outer bag.
- Optional adjustment to filling volume, inner bag, outer bag and tag..
- It can adjust the size of inner bag and outer bag as request of customers, and eventually achieve the ideal package quality so as to upgrade the sales value for your goods and then bring more benefits.
Specification:
| Model | Tag Size | Thread length | Inner bag Size | Outer bag Size | Measuring Range | Capacity | Total Power | Machine Size(L*W*H) | Machine Weight |
|---|---|---|---|---|---|---|---|---|---|
| TB-01 | W: 40-55mm L: 15-20mm | 155mm | W: 50-80mm L: 50-75mm | W: 70-90mm L: 80-120mm | 1-5 (Max) | 30-60 (bags/min) | 3.7KW | 1000*800*1650mm | 500kg |
