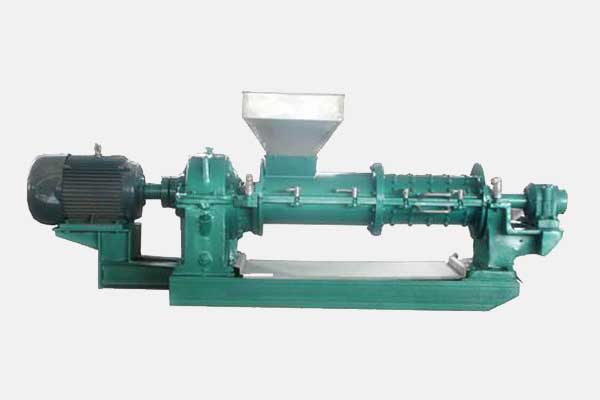

Rotor-vane Type Tea Rolling-cutting Machine
Feature:
Applicable to the broken tea rolling and cutting operations.
Specification:
| Model No. | Machine dimensions(m) | Performance capacity (kg/h) | Power(kw) | Spindle Revolutions per minute(rpm) | Inner diameter*length of the Drum (m) | ||
|---|---|---|---|---|---|---|---|
| Length | Width | Height | |||||
| JY-6CRQ16 | 1.73 | 0.4 | 0.7 | 350 | 4 | 34 | 0.16*0.70 |
| JY-6CRQ20 | 2.4 | 0.44 | 0.81 | 500 | 5.5 | 34 | 0.20*0.92 |
| JY-6CRQ25 | 5.2 | 0.85 | 0.88 | 700 | 7.5 | 34 | 0.25*1.43 |
