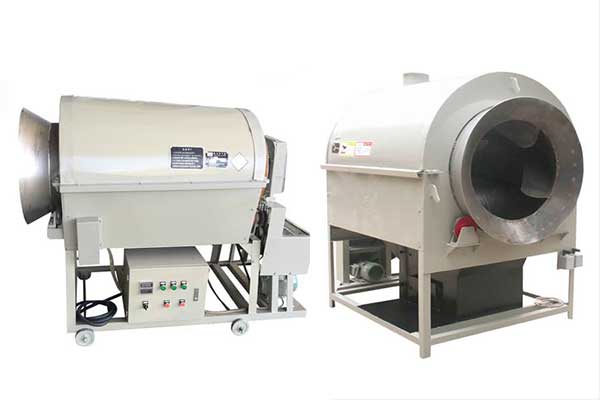

Revolving Dryer
Feature:
Tea leaf rotate and tumble in the revolving drum, water loss from evaporation, forming shape, and high aroma.
Specification:
| Model No. | Machine dimensions(m) | Inner Diameter*length of the Revolving Drum(m) | Output(kg) | Revolutions Per minute(rpm) | Required Power(kw) | ||
|---|---|---|---|---|---|---|---|
| Length | Width | Height | |||||
| JY-6CSP60 | 1.5 | 0.8 | 1.5 | 0.65*1.3 | 20~30 | 26~28 | 0.55 |
| JY-6CSP80 | 1.74 | 1.04 | 1.7 | 0.8*1.49 | 30~40 | 26~28 | 0.55 |
| JY-6CSP90 | 1.78 | 1.1 | 1.7 | 0.9*1.49 | 40~50 | 26~28 | 0.75 |
| JY-6CSP110 | 1.87 | 1.4 | 1.91 | 1.1*1.56 | 50~60 | 26~28 | 1.1 |
