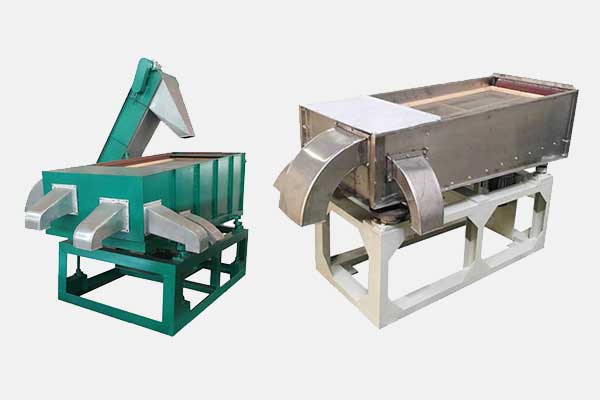

Plane Circular Sieve Machine
Feature:
Extend and widen the sieve bed(length:1.8m,width:0.9), increase the movement distance of tea in the sieve bed, increase the sieving rate.
It has vibration motor in the mouth of feeding conveyor belt, ensure feeding tea not to be booked.
Specification:
| Model No. | Machine dimensions(m) | Performance capacity(Kg/h) | Sieve bed Revolutions per Minute(rpm) | Required Power(kw) | Type | ||
|---|---|---|---|---|---|---|---|
| Length | Width | Height | |||||
| JY-6CYS73 | 0.95 | 1.58 | 1.0 | 200~300 | adjustable | 0.55 | 3 sieve, rotary type |
| JY-6CYS900 | 2.75 | 2.83 | 2.9 | 550~750 | adjustable | 1.47 | 4 sieve,rotary type |
