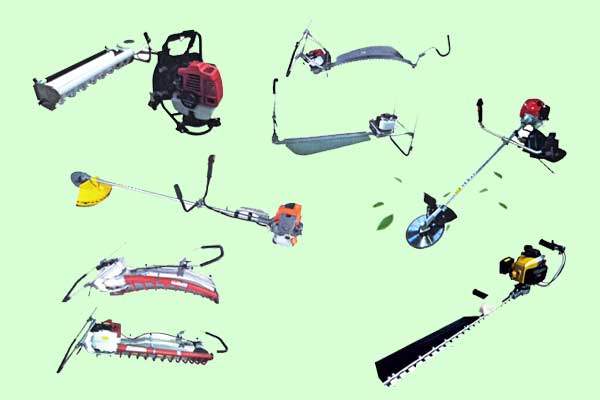

Pruning Machine
Single Man Tea Harvester Model Specification:
Model No. | Engine | Engine type | Displacement | Power | Blade length | Efficiency | N.W./G.W. | Machine dimension |
---|---|---|---|---|---|---|---|---|
TP45H | Mitsubishi TU26/1E34F | 2-Stroke | 25.6cc | 1.1HP | 450mm | 150-200kg/h picked tea leaf | 9kg/11.5kg | 700-280"200mm |
TP60H | Mitsubishi TU26/1E34F | 2-Stroke | 25.6cc | 1.1HP | 600mm | 150-200kg/h picked tea leaf | 9.5kg/12kg | 800*280*200mm |
Two-man tea(Lavender) Harvester Model Specification:
Model No. | Engine | Engine type | Displacement | Power | Blade length | Efficiency | N.W./G.W. | Machine dimension |
---|---|---|---|---|---|---|---|---|
TS100L | Original G4K Engine | 2-Stroke, 8000rpm | 4155 cc | 3.0HP | 1000mm curve | 350-400kg/h picked leaf | 3.5kg/20kg | 1370 550"450mmn |
TS110L | Original G4K Engine | 2-Stroke, 8000rpm | 4155 cc | 3.0HP | 1100mm curve | 400-450kg/h picked leaf | 14kg/21kg | 1420*550*450mm |
TS120L | Original G4K Engine | 2-Stroke, 8000rpm | 4155 cc | 3.0HP | 1200mm horizontal | 450-500kg/h picked leaf | 16kg/25kg | 1480*550*450mm |
Two-man Tea Skiffing(Pruning) Machine Specification:
Model No. | Engine | Engine type | Displacement | Rated output Power | Blade length | Net Weight /Gross Weight | Machine dimension |
---|---|---|---|---|---|---|---|
TM110LL | Mitsubishi Japan | 2-Stroke | 2.6c/42.7c | 1.3HP/1.7HP | 1100mm Horizontal/Curve | 13.5kg | 1490*550*300mm |
Single-man Tea Skiffing(Pruning) Machine Specification:
Model No. | Engine | Engine type | Displacement | Rated output Power | Blade length | Net Weight | Machine dimension |
---|---|---|---|---|---|---|---|
TJ75H | ECO25 Japan quality | 2-Stroke | 25.6cC | 1.1HP | 750mm | 5kg | 1050*285*255mm |
Tea Harvester V8 World Specification:
Model No. | Engine type | Blade length | N.W./G.W. of machine unit | N.W./G.W. of ski unit | Machine dimension |
---|---|---|---|---|---|
V8 1210mm | G4K 2-Stroke, 8000rpm,41.5cc,3HP | 1210mm(horizontal) | 13.5kg/21kg | - | 1400"490"330mm |
v8 1400mm | G4K 2-Stroke,8000rpm,41.5cc,3HP | 1400mm(horizontal) | 6.3kg/24kg | 8.9kg/12k | 2070 490"500mm |
Brush cutter & Tea pruner Specification:
Model No. | Engine | Engine type | Working head | Blade | Max Cutting size | Dimension | Net Weight |
---|---|---|---|---|---|---|---|
TP43H | Mitsubishi Japan | 2-Stroke,43cc, 1.7HP | 120 Angle | 9'80T Circular saw with grass trim head | - | 1600 293 290mm | 8.5KG |
TP43 | Mitsubishi Japan | 2-Stroke, 43cc,7000rpm,1.7HP | Right Angle | 100T/120T Circular saw | 35mm | 1400*293*290mm | 8KG |
