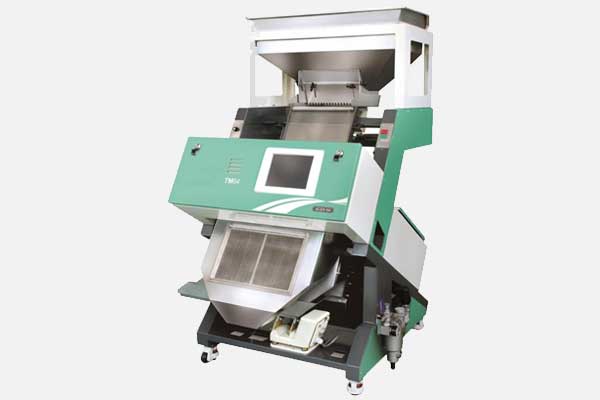

Single Layer Tea Colour Sorter
Feature:
- Compact structure, the appearance of a mini. Machinery installation, maintenance, and convenient transportation.
- The production area covers an area of small, low environmental requirements have work, adaptability and other characteristics.
- Intelligent man-machine interface, easy to learn, really achieve personal operating choose tea.
- Brown accurate identification of Tie Guanyin tea with the red, yellow, blue, white stems and other undesirable products.
- Especially for small businessmen to tea processing, tea completely change the processing mode selected..
- The international high-end industry-specific dual view camera, recognition accuracy sorting, selected from the net rate increase..
Note: The above table color selected performance parameters are selected from the color impurity content of 5% of Tie Guanyin tea, for example, specific targets will vary as per contamination content and change. The above data for reference only, as a result of equipment to improve the technical level and are subject to change without notice.
Specification:
Model No. | Output (kg/hr) | Channels | Ejectors | Light Source | Pixel of Camera | Camera Number | Color sorting Accuracy | Carryover Rate | Host Power | Power Supply | Machine dimension(mm) | Machine weight (kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
6CSX-63DM | 50-150kg/h | 63 | 63 | LED | 5400 | 2 | >99% | 5:1 | 1.0 | 220/50(110/60) | 1030*1490 1540 | 300 |
6CSX-126DM | 150-200kg/h | 136 | 126 | LED | 5400 | 4 | >99% | 5:1 | 1.0 | 220/50(110/60) | 1360*1490'1540 | 390 |
