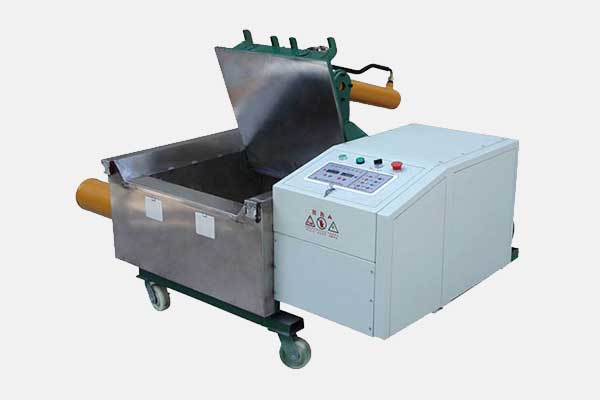

Tea Compressing & Modelling Machine (Hydraulic Type)
Feature:
- Extrude the tea info cuboid shapes, make the leaf tea shape into granulated tea shapes.
- Adopt automatic variable plunger pump device higher pressure, make tea tightly, curly, fast forming, color in the same.
- All work program adopts hydraulic driving.
- Automatically set the working pressure and time.
Specification:
| Model No. | Machine dimensions(m) | Feeding Tankdimensions(m) | Performance Capacity(Kg/h) | Working Pressure(Mpa) | Required Power(kw) | The oil Pump(ml/r) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Length | Width | Height | |||||
| JY-6CZX60 | 2.0 | 1.56 | 35~85 | 0.65 | 0.60 | 0.62 | 35~85 | 45 | 5.5 | 25 |
| JY-6CZX70 | 2.2 | 1.66 | 40~90 | 0.80 | 0.70 | 0.62 | 40~95 | 15 | 5.5 | 25 |
